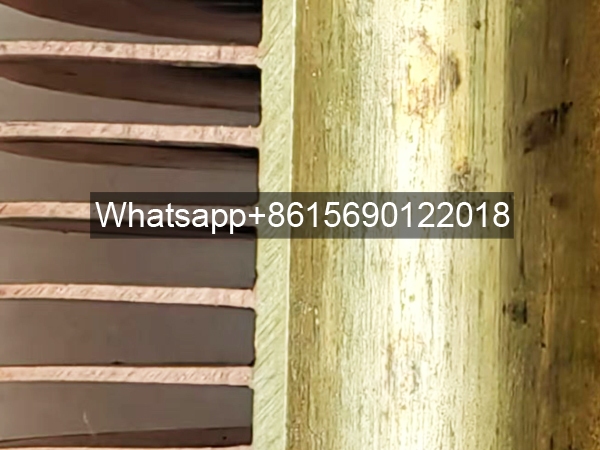

Laser-Welded Copper Fin Tubes

As an advanced heat exchange component, laser-welded copper fin tubes are increasingly used in the industrial sector. Their unique manufacturing process and superior performance characteristics make them an indispensable component of numerous industrial equipment.

This article will provide a detailed introduction to the basic principles, manufacturing process, performance characteristics, application areas, and use and maintenance of laser-welded copper fin tubes.

I. Basic Principles of Laser-Welded Copper Fin Tubes

The basic principle of laser-welded copper fin tubes is to use a high-energy laser beam to locally heat the tube material, causing it to melt rapidly and form a weld joint. Laser welding technology uses a focused laser beam to precisely and rapidly heat the material surface, bringing it to its melting point and melting it in a very short time. This process then forms a metallurgical bond with the base material, achieving the weld. During this process, the high energy density of the laser beam ensures the quality of the weld joint, resulting in a strong and durable weld.

II. Manufacturing Process of Laser-Welded Copper Fin Tubes

The manufacturing process of laser-welded copper fin tubes primarily includes material preparation, surface treatment, clamping and fixing, laser welding, cooling, weld inspection, and cleaning and shaping.

1. Material Preparation:

Select high-quality copper for the fins, ensuring excellent thermal conductivity, corrosion resistance, and processability. The base tube material should be selected based on the specific application, such as stainless steel or carbon steel.

2. Surface Treatment:

Before welding, the base tube and fins undergo rigorous surface treatment to remove impurities such as oil, rust, and oxide film. This ensures effective laser energy transfer and weld quality during welding.

3. Clamping and Fixing:

Assemble the base tube and fins according to design requirements and secure them precisely using a dedicated fixture to ensure they maintain their relative position during welding.

4. Laser Welding:

Select the appropriate laser power and welding speed based on factors such as the base tube and fin material and thickness. During welding, strictly control the laser beam’s focal position to achieve optimal energy distribution and weld quality.

5. Cooling:

After welding, properly cool the welded area to prevent thermal cracking and deformation. The cooling rate should be adjusted appropriately based on the material type and thickness.

6. Weld Inspection:

Welds are thoroughly inspected using methods such as visual inspection and nondestructive testing to ensure they meet quality requirements.

7. Cleaning and Reshaping:

Spatter, slag, and other impurities generated during welding are cleaned, and the finned tubes are reshaped after welding to meet size and shape requirements.

III. Performance and Characteristics of Laser-Welded Copper Finned Tubes

Laser-welded copper finned tubes offer a range of superior performance characteristics, making them widely applicable in the industrial field.

1. High Welding Precision and Strength: Laser welding technology offers a high degree of automation and welding precision, enabling single-pass welding. It produces high weld strength and excellent durability.

2. Small Heat-Affected Zone: Laser welding results in a narrow weld seam, a small heat-affected zone, fast welding speeds, and minimal deformation, ensuring a secure connection between the fins and the base tube and efficient heat conduction.

3. Excellent Corrosion Resistance and Thermal Conductivity: Copper finned tubes offer excellent thermal conductivity and corrosion resistance, making them suitable for applications requiring high heat transfer efficiency. Furthermore, copper’s corrosion resistance ensures long-term stable operation in corrosive environments.

4. Material Diversity: Laser welding overcomes material limitations and allows for processing with a wide range of materials. This allows laser-welded copper finned tubes to select the appropriate base tube and fin materials based on specific application requirements, meeting diverse operating conditions.

5. Ease of Secondary Processing: Laser-welded copper finned tubes are easily processed into coils, elbows, and other secondary processes, facilitating installation and use in complex environments.

IV. Applications of Laser-Welded Copper Finned Tubes

Laser-welded copper finned tubes are widely used in a variety of applications due to their high efficiency and durability.

1. Petroleum Refining: Petroleum refining requires extensive heat exchange equipment. Laser-welded copper finned tubes, with their efficient thermal conductivity and excellent corrosion resistance, are an ideal choice for this equipment.

2. Chemical Industry: The chemical industry places high demands on equipment for corrosion resistance and heat exchange efficiency. Laser-welded copper finned tubes meet these requirements, ensuring the long-term, stable operation of chemical equipment.

3. Pharmaceutical Industry: The pharmaceutical industry places strict demands on equipment cleanliness and corrosion resistance. Laser-welded copper finned tubes, with their excellent corrosion resistance and easy cleaning, are a preferred material for pharmaceutical equipment.

4. Food Industry: The food industry also places high demands on equipment hygiene and heat exchange efficiency. Laser-welded copper finned tubes, with their excellent hygiene and high heat exchange efficiency, are suitable for heat exchange equipment in food processing.

5. Boiler, Drying and Refrigeration: In industries such as boilers, drying and refrigeration, laser-welded copper finned tubes, with their high efficiency and durability, have become core components in heat exchangers.

V. Use and Maintenance of Laser-Welded Copper Finned Tubes

To ensure the long-term, stable operation of laser-welded copper finned tubes, the following points should be noted during use:

1. Material Selection and Pretreatment: When selecting base tube and fin materials, comprehensive consideration should be given to the specific application environment and process requirements. Prior to welding, the base tube and fins must be rigorously pretreated to ensure the cleanliness of the weld area.

2. Welding Process and Parameter Control: During the welding process, parameters such as laser power, welding speed, and welding path must be strictly controlled to ensure weld quality and stability. Furthermore, an appropriate shielding gas must be selected and its flow and pressure parameters adjusted to prevent oxidation and nitriding of the weld at high temperatures.

3. Pre-Installation Preparation and Installation Procedures: Before installing laser-welded copper finned tubes, the material must be thoroughly inspected to ensure it is free of damage and deformation. Furthermore, the installation environment must be kept clean and dry to prevent dust and moisture from adversely affecting the finned tubes. During installation, ensure that the finned tubes are protected from damage and that welding procedures are performed in accordance with the welding process requirements.

4. Precautions for Use: During operation, strictly follow the operating procedures to avoid improper operation, such as overheating and overpressure. Regularly inspect and maintain the finned tubes to ensure they are in good working condition.

5. Performance Testing and Troubleshooting: Before commissioning, finned tubes must undergo performance testing to verify that they meet design requirements and process standards. If any faults or problems are discovered, immediate action should be taken to address and repair them.

Laser-welded copper finned tubes, with their high efficiency and durability, have broad industrial application prospects. By strictly controlling various parameters and requirements during the manufacturing process and operation, we ensure the long-term stable operation and superior performance of laser-welded copper finned tubes.
